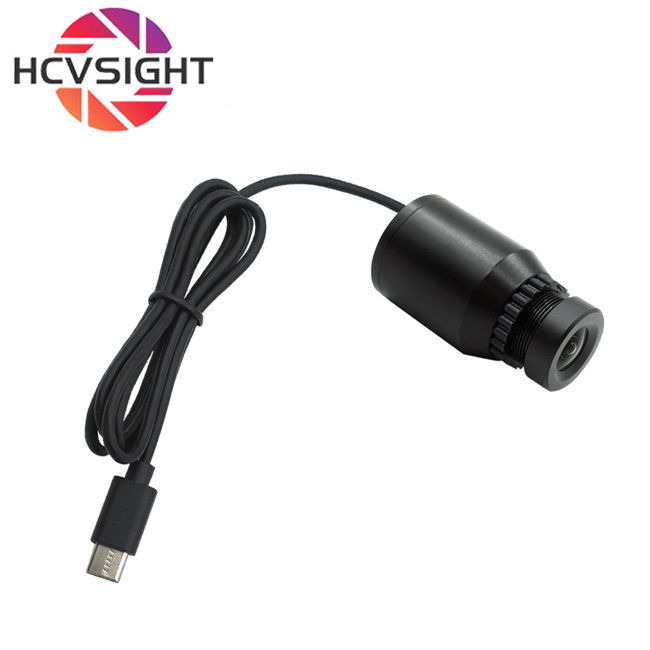

Micro Bullet USB Camera 2MP Distortion Free Lens HD Industrial Monitoring Camera
Product Description:
This camera is equipped with a distortion free lens, which has excellent optical performance and can provide a suitable viewing range to meet the monitoring field of view requirements in most industrial scenes. While ensuring the clarity of the image, it can effectively cover a larger area, reduce monitoring blind spots, and allow you to better understand the monitoring area. Adopting the Type-C interface, this interface has strong universality and stability. It not only supports high-speed data transmission, but also ensures the smoothness of surveillance videos. The unique bullet shaped design not only has a simple and compact appearance, but also has a sturdy structure. It can adapt to various complex and harsh industrial environments, whether it is dusty workshops or vibrating equipment, it can work stably to ensure the continuous progress of monitoring tasks and safeguard industrial production.
Technical parameters: Specification for 3.6mm undistorted lens.pdf
| sensor | 1/2.9" |
| Pixel | 2MP |
| Compression format | MJPG/YUV2 |
| Frame rate | 1920X1080 30fps |
| Audio | optional |
| Power frequency working voltage | DC 5V |
| Product size | 18mmx23mm(Base size is not included) |
| white balance | automatic |
| working temperature | <70° |
| Power consumption | 0.25w |
| model | HCU-ZDT182TPC |
| Interface type | type-c |
| Night vision function | Not supported |
| lens | Effective length: 3mm |
| F.ON:2.2 |
| Distortion: <-1.0% |
| Element:4E+IR |
| Angle:D=95° H=83° V=55° |
| Chip type | COMS |
| Support operating system | WinXP/Mac OS/Linux//Win7/Win8/Win10/ Android |
|
Product advantages and application scenarios:
1. High definition imaging: 2 million pixels high-definition resolution (resolution) 1920x1080@30fps )Provide delicate picture quality and accurately capture details.
2. Exquisite body: 18x23mm size, square metal shell design ensures high temperature resistance and strong reliability in harsh environments.
3. Plug and play: Type-C interface (or optional USB 2.0, Android), compatible with operating systems (Windows, Mac, Linux, Android, etc.), no drive installation, easy development and integration.
4. Flexible lens options: Supports multiple lens options, and different focal length lenses (such as wide-angle, standard, telephoto) can be selected according to different working distances and field of view (FOV) requirements.
5. Adjustable image parameters: Supports adjusting exposure, white balance, gain, contrast, saturation, and other parameters through software to adapt to complex lighting scenes.
Professional customized services Huachuang Finished Product List.xls
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type (such as USB and Android).
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP, 5MP, 8MP, 12MP).
Camera application field
Industrial automation and machine vision, precision equipment status monitoring, security monitoring, embedded intelligent access control/attendance systems, miniaturized concealed monitoring equipment, vehicle mobile monitoring, smart home security, endoscope assisted imaging, laboratory equipment monitoring, vehicle driving recorder (DVR), small traffic monitoring equipment, intelligent retail terminals, drone/robot visual perception, education/conference system cameras, various embedded devices that require compact visual solutions, Advertising machine, all-in-one machine, intelligent electronic scale, automatic welding equipment, fire water gun, external law enforcement instrument, external camera for Android phone, computer camera, high-speed camera etc.
Support and service:
Our USB camera products come with comprehensive technical support and service to ensure you get the best experience. Our team of experts are always available to help you with any questions or queries you have about our products.
We provide the following technical support and services:
- Online product documentation and user manuals
- Technical support via email or phone
- Remote Desktop Assistance
- Repair and replacement services
- Product training and education
- Customized solutions for specific needs
Our goal is to provide you with the highest level of customer satisfaction and support. If you need any assistance with your USB camera products, please feel free to contact us.
